Marktronic InDot 4000

This machine type from our Marktronic series has been specially developed for autonomous use directly in your production line. The robust, industrial-grade dot peen markers are dust and splash-proof, making them ideal for harsh production environments.

Thanks to their stable construction and precise threaded spindle drives, the devices are ideal for:

• high-quality data matrix and 2D codes,
• dot marking on different materials,
• continuous operation applications,
• marking at high speeds and with consistently reproducible quality.

Our Marktronic systems thus offer a reliable solution for companies that need robust, inline-capable and flexible needle marking technology.

Stable control for maximum process reliability

The control unit is connected to the marking head via a high-quality, shielded cable. This reliably prevents possible static charging – an important factor for trouble-free continuous operation.

Multiple communication and connection options ensure that the marking system can be easily integrated into existing systems:

Standard connections:

• 24 V digital input/output, with 8 inputs and 6 outputs
• Simple programming via script language for direct system control
• Two RS-232 interfaces for data import, automation processes or machine communication

Optional:

• TCP/IP Ethernet interface for convenient control via central servers or control systems

This allows the machine to be flexibly integrated into any production environment – whether as an inline system or as part of a complex automation solution.

Needle engraver with AutoSense system – maximum precision with variable workpiece heights

The AutoSense system is available as an option for particularly demanding marking tasks. This intelligent feature automatically measures the distance to the workpiece surface and corrects it in real time.

Advantages of the AutoSense system:

• Perfect marking quality even with different workpiece heights
• No manual height adjustment required
• Always optimum embossing pressure for clear, legible dot markings
• Automatic return to the starting position after each marking process

A digital Z-axis, which is also available as an option, is required to use the AutoSense system. This combination is the ideal choice, especially for data matrix codes, filigree markings or varying component surfaces.

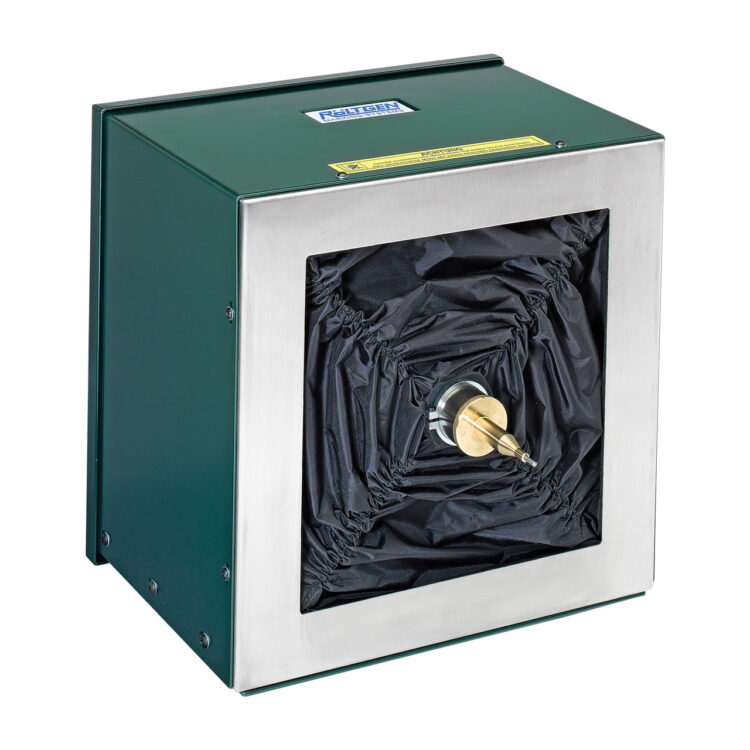

Flexible marking heads in several sizes

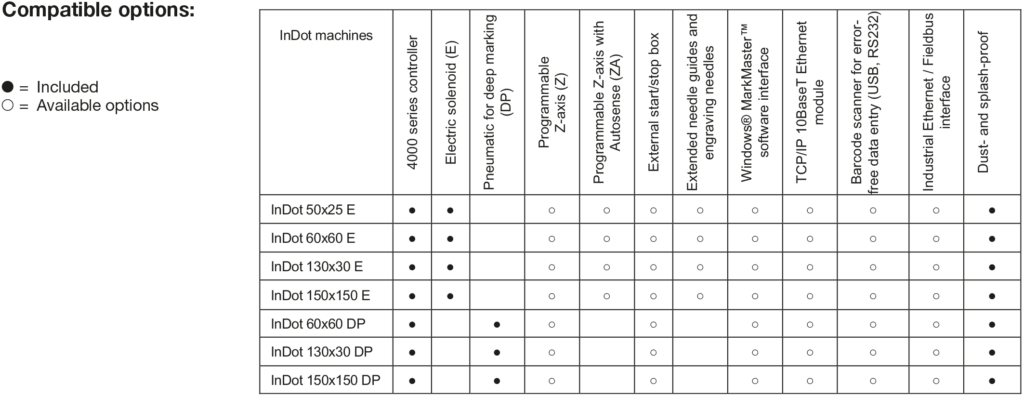

Marktronic dot peen marking machines stand for the highest quality and accuracy. Depending on the application, you can choose different marking areas:

• 50 x 25 mm – compact, ideal for small marking areas
• 60 x 60 mm – for square marking fields
• 130 x 30 mm – perfect for long, narrow codes or lines of text
• 150 x 150 mm – maximum flexibility for large marking fields

This allows the devices to be optimally adapted to the requirements of your production line and your components.

Your advantages at a glance

✔ Self-sufficient dot peen marking machine for production lines

✔ Inline-capable, flexible integration and powerful communication

✔ Robust, dust- and splash-proof marking heads

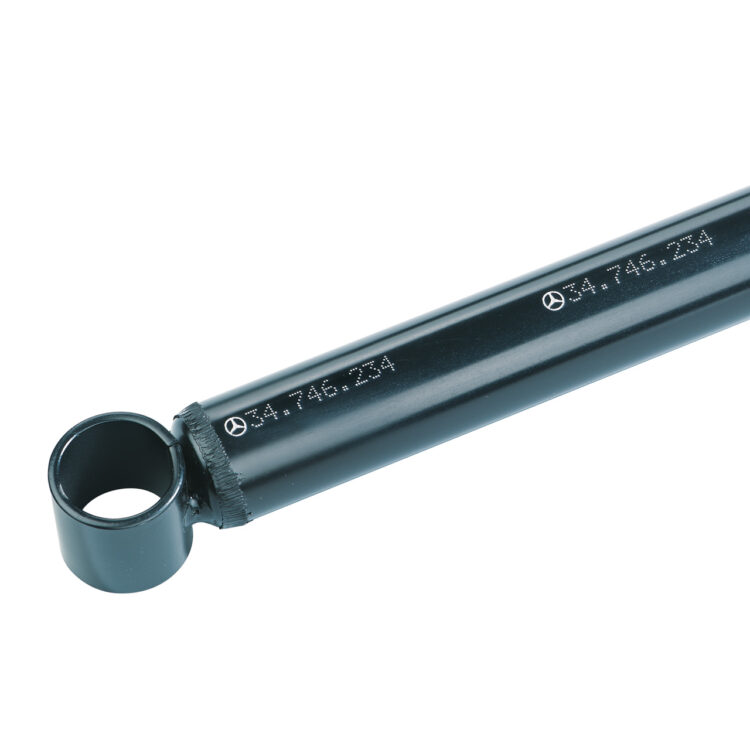

✔ Precise dot marking for data matrix, text, logos and serial numbers

✔ AutoSense system for maximum marking quality with varying component heights

✔ Large selection of models for different marking areas

✔ Ideal for continuous operation and high cycle rates

✔ Simple data connection via RS-232, digital I/Os or TCP/IP

Conclusion – The ideal dot peen marking machine for modern production processes

Marktronic systems offer everything that modern manufacturing needs:

autonomous operation, inline capability, precise dot marking and flexible data connection.

The AutoSense system and digital Z-axis enable even the most demanding marking tasks to be performed automatically and reproducibly.

This makes them the perfect choice for companies that rely on maximum process reliability, consistent marking quality and fully integrable solutions.
