Marktronic PortaDot 6030T

The portable all-in-one dot marker offers a marking area of 60 x 30 mm.

Sometimes it is not possible to place the workpiece to be marked under the marker. For this case, there are our portable dot markers. Until now, however, these were only available with a separate controller and cable. We have now changed that and developed a compact, self-sufficient and portable device: the PortaDot 6030T dot marker. With the built-in computer, the fully programmable touch screen with display protection and the operating pen, the desired marking can be entered directly on the device. The 36V branded battery allows for many self-sufficient markings without a cable getting in the way.

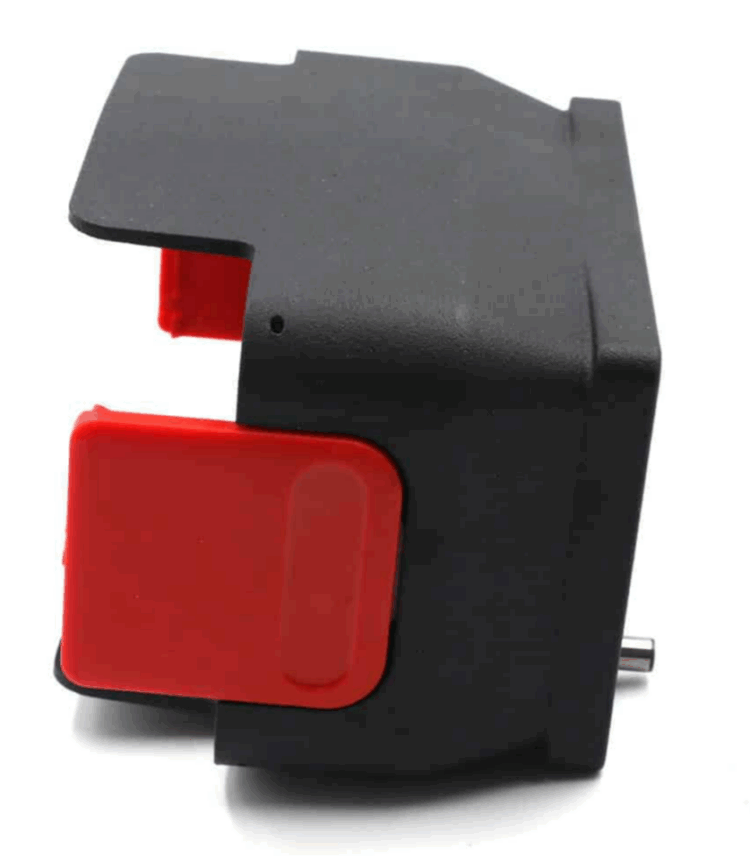

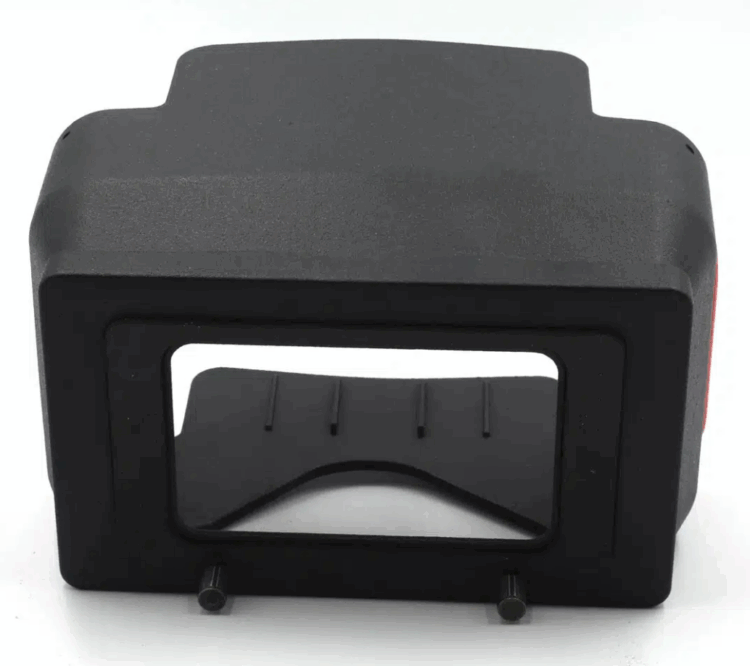

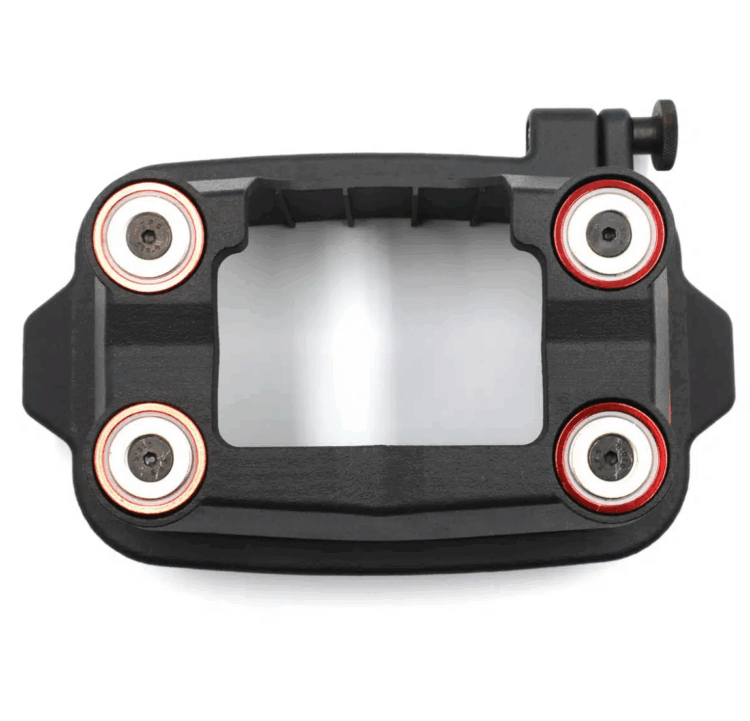

The flat attachment with integrated V-shaped recesses enables the marking of flat and round workpieces without any changeover effort. In poorly lit halls, the integrated LED lighting with motion sensor helps. The machine is supplied in a sturdy case with quick charger. Due to the high-torque motors and the precise threaded spindles, the dot marking machine has been specially developed for the high demands in industry. A carbide stylus is set in vibration by an electromagnet. This causes dots to be imprinted in the material, resulting in the marking.

Almost all materials up to 62 HRC can be stamped. The surface can be smooth or uneven. The dot marking machine can automatically compensate for a height difference of 3 mm.

Technical data

Marking area

  • 60 x 30 mm

Weight

  • 3,7 kg

Battery

  • 36 V (brand battery)

Power supply Charger

  • 110 V to 230 V
  • 50Hz to 60Hz

Stylus

  • 4 mm dia. x 50 mm

Connections

  • USB A
  • USB B
  • WiFi

Software

  • character heights from 0.55 – 59.9 mm in 0.15 mm steps
  • adjustable marking force (therefore also depth)
  • Various fonts
  • Marking at any angle
  • Marking in any radius
  • Serial numbering
  • 2D data matrix code
  • Vector graphics and logo marking (.plt)
  • Processing of CSV files
  • Real time and date
  • Mirror font
  • Test run function
  • Various menu languages
  • Password protection
  • CE logo integrated in software
  • Memory capacity: up to 9000 layouts

Options

  • Spare battery
  • Various grinding angles for gravers (e.g. according to ASME regulation)
