Portable laser marking device PLM2/10

Portable 2-in-1 laser marking system for maximum flexibility and precision.

Group 1913

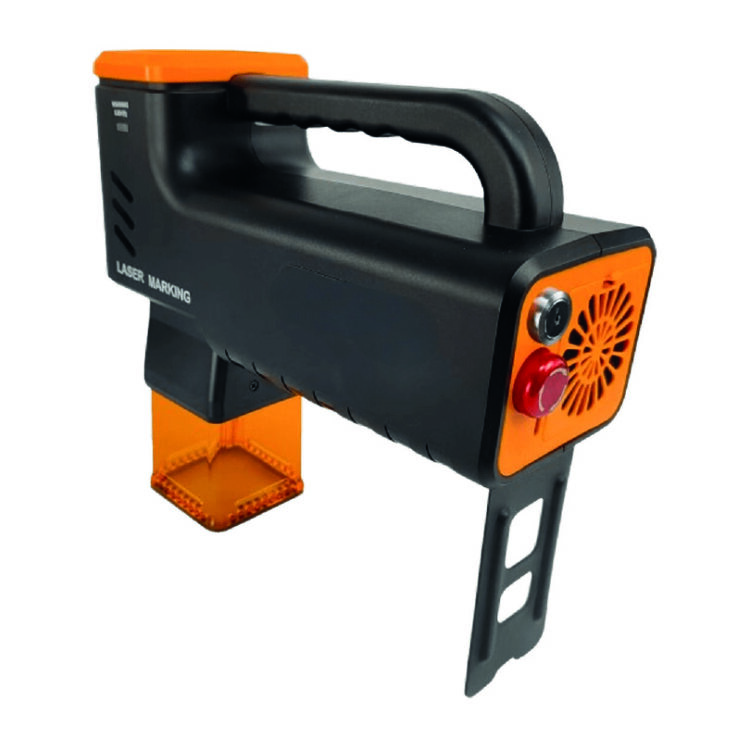

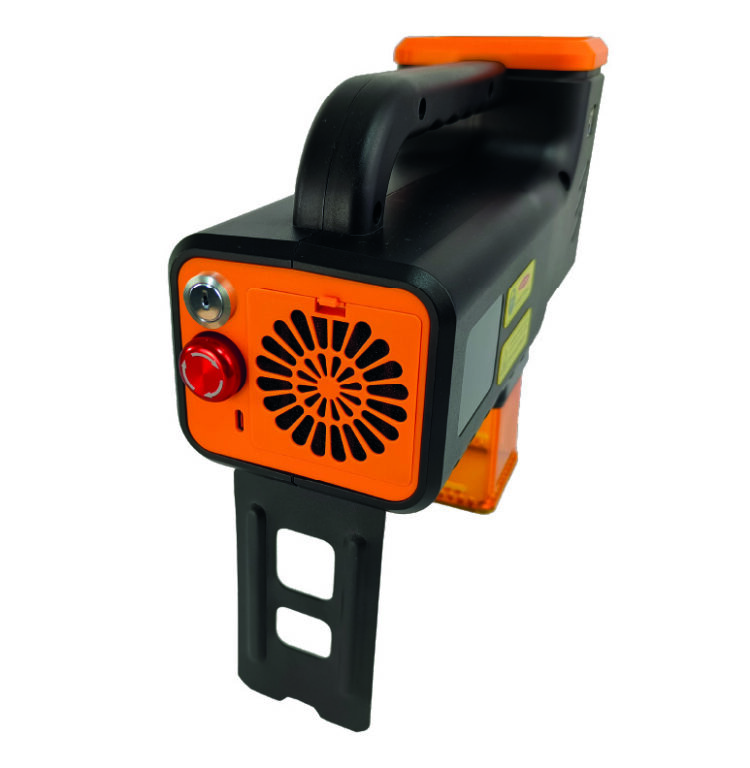

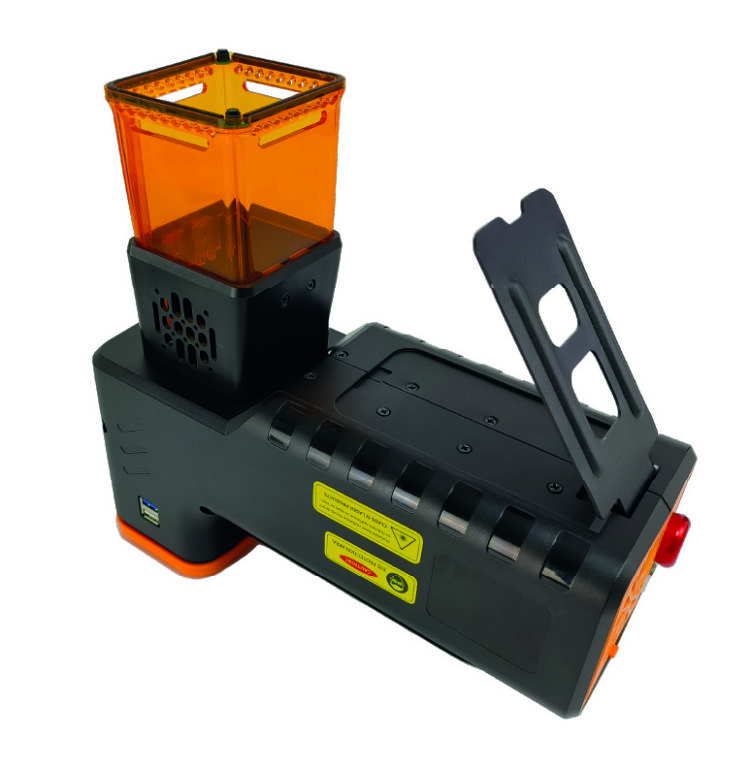

With the portable 2-in-1 PLM2/10 laser marking system, you can offer a state-of-the-art solution for versatile marking – anytime, anywhere. This system combines a 455 nm blue laser with a 1064 nm infrared laser and is ideal for a wide range of materials – from metals to plastics and glass.

Thanks to a beam size of only 0.05 mm, you can achieve outstanding precision – ideal for delicate and permanent markings. The operation is deliberately simple: plug & play functionality, an integrated touchscreen and control via smartphone or PC make the system ready for immediate use. The mobile design – operation via battery or power bank – enables fast, professional marking, especially on metal surfaces.

The ideal device for marking something ‘in between’. If you want to mark larger quantities, we recommend you this laser.

Technical data at a glance

• Laser power: 2 W (1064 nm) + 10 W (455 nm)
• Wavelengths: 1064 nm (IR) + 455 nm (blue)
• Pulse frequency: 1 – 4000 kHz
• Marking speed: 4000 mm/s
• Marking area: 55 × 55 mm
• Marking depth: 0.01 – 0.1 mm
• Dimensions: 108 × 271 × 288 mm (L × H × W)
• Weight: approx. 2 kg
• Battery: Li-ion 20 V/5 A (charging time: 3 – 4 hours)
• Protection class: Laser class 1

Suitable materials

• Metals: stainless steel, steel, copper, brass, titanium, aluminium (including anodised) and others
• Non-metals: ceramics, glass, rubber, wood, leather, plastics (e.g. ABS, PVC, polycarbonate)

Your advantages at a glance

• Maximum mobility: Whether on site, in the workshop or in the field – mark flexibly wherever necessary.
• Material diversity: A single system for numerous materials.
• High speed and precision: With a beam size of 0.05 mm and a marking speed of up to 4000 mm/s, even large quantities can be efficiently produced.
• Easy to use: Ready for immediate use thanks to touchscreen and app/PC control – no extensive training required.
• Long-term investment: No consumables required, minimal maintenance

With this system, you are investing in a future-proof marking solution.
