Laser marking in a compact space

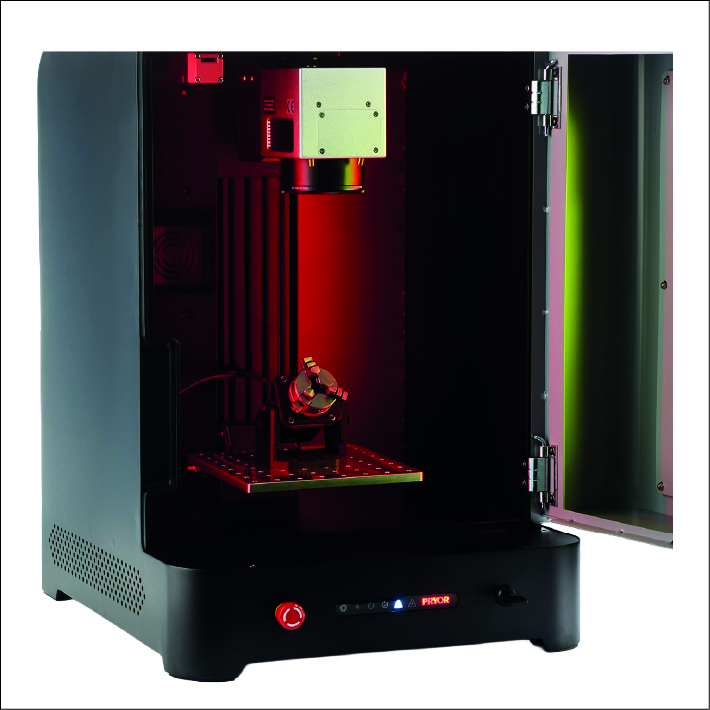

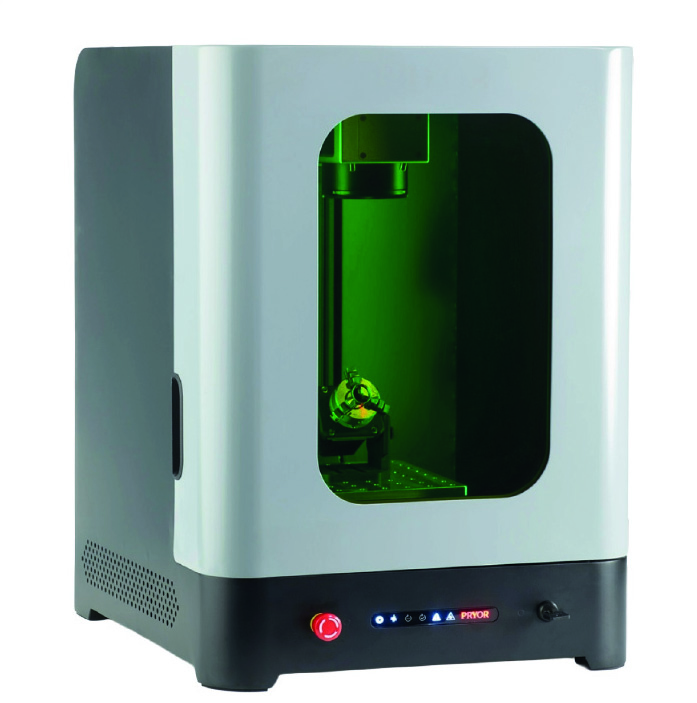

Discover the powerful solution for precise laser marking in a small space: the Markmate Laser. This compact desktop machine combines state-of-the-art fibre laser technology with intuitive operation – ideal for demanding marking tasks in production, manufacturing and quality assurance.

Your advantages at a glance

• Versatile material processingThe Markmate laser uses a fibre laser source that enables permanent marking on a wide variety of materials, including metals, coated metals, plastics, ceramics and more. This makes it easy to apply serial numbers, logos, barcodes/QR codes or fine engravings.
• Compact desktop designThe machine is designed for use in small spaces. With its compact dimensions, it fits into workplaces with limited space while offering sufficient marking area for numerous component sizes.
• Easy operation & softwarePowerful traceability software with an intuitive user interface is included. This allows marking parameters to be quickly set up, changed and documented – an important advantage in modern manufacturing processes.
• Safety & productivitySafety features such as shutdown interlocks and shielding ensure the protection of operating personnel. At the same time, an efficient cooling system ensures that the laser source can remain in operation for longer periods of time – for high throughput dynamics.

Technical data:

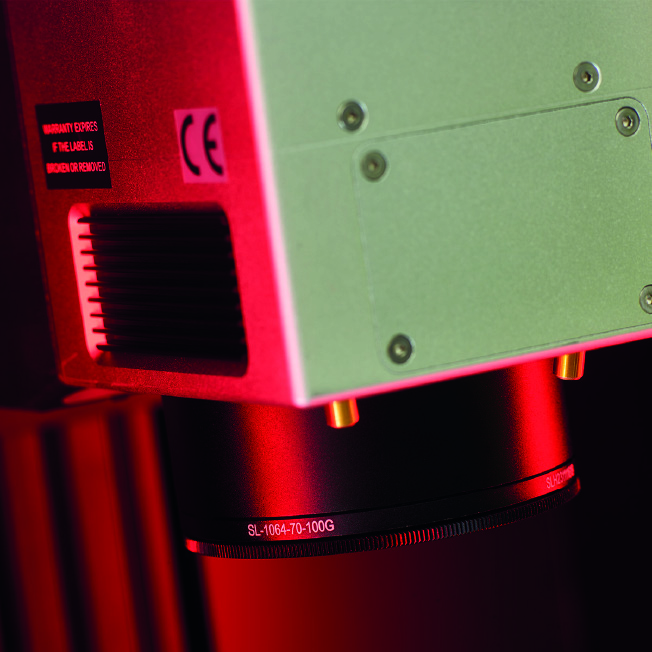

• Fibre laser with 18.5 watts of power
• Fibre optics: 2.5 m cable incl. protective hose with 8 mm collimator/isolator
• Average diode service life: over 50,000 hours
• Frequency range: 30 – 60 kHz
• Maximum component weight: 5 kg

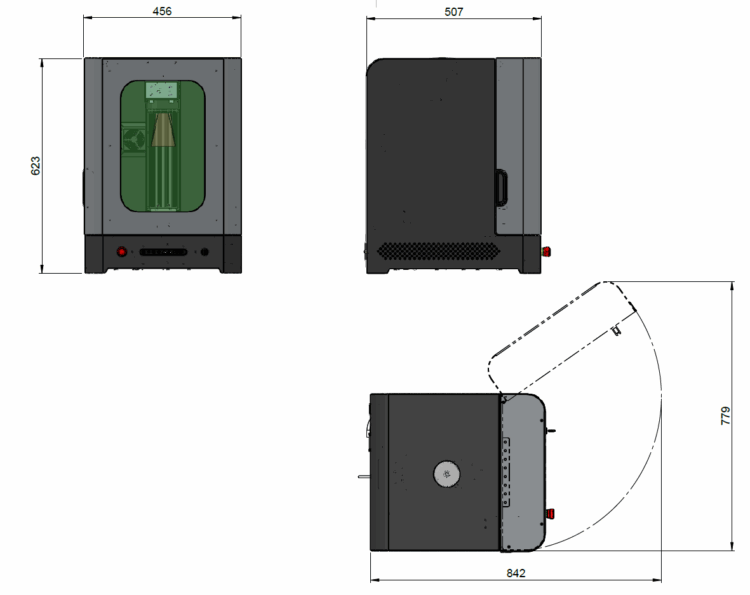

• Dimensions: Height 623 mm, width 456 mm, depth 507 mm

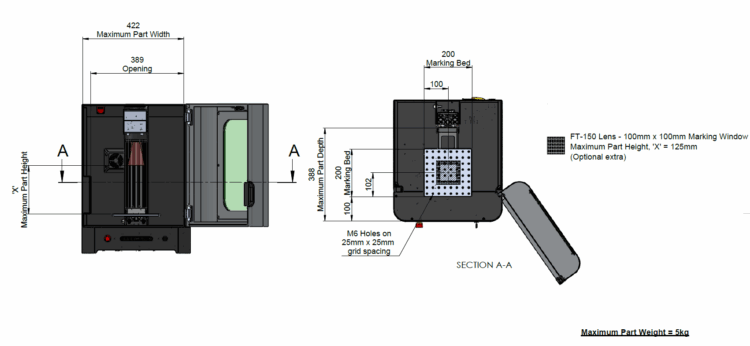

• Marking area (standard): 70 × 70 mm; optional: 100 × 100 mm or 140 × 140 mm
• Pulse energy: 0.7 mJ; average power approx. 18.5 W
• Operating voltage: 110 or 220 V; power consumption <200 W

Optional accessories:

• Laptop

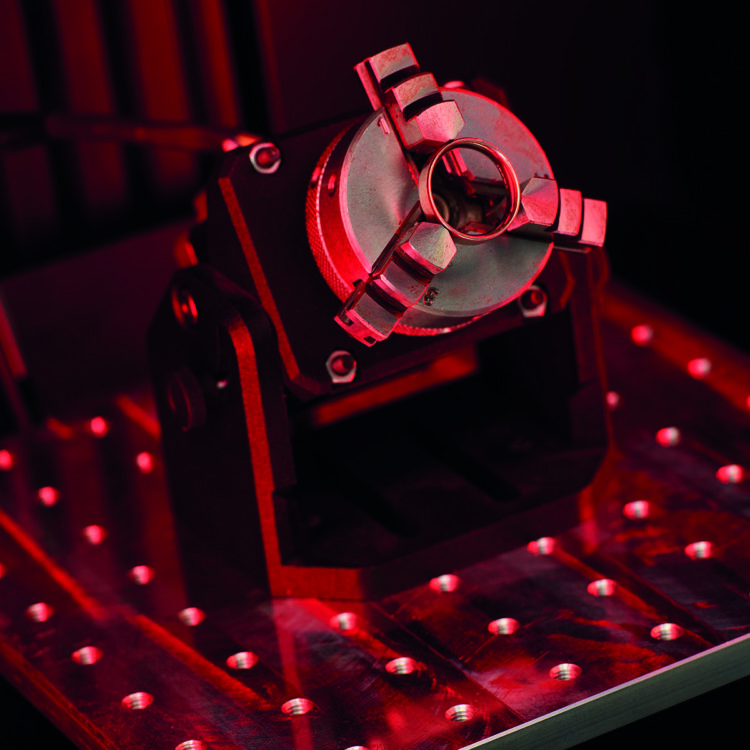

• circumferential fixture
• Suction
• Digital I/O interface
• Data matrix reader and software

Ideal for your application

Whether for marking individual parts, series production or demanding engraving, the MarkMate laser delivers high quality with a small footprint. Particularly suitable for areas such as:

• Machinery and plant engineering
• Automotive and supplier industry
• Aerospace
• Medical technology
• Plastics and metal processing

Why choose us?

We support you from selection and installation to commissioning and training. You benefit from technical advice, fast spare parts delivery and a reliable service network. With us, you not only get a machine – you get a marked future.
